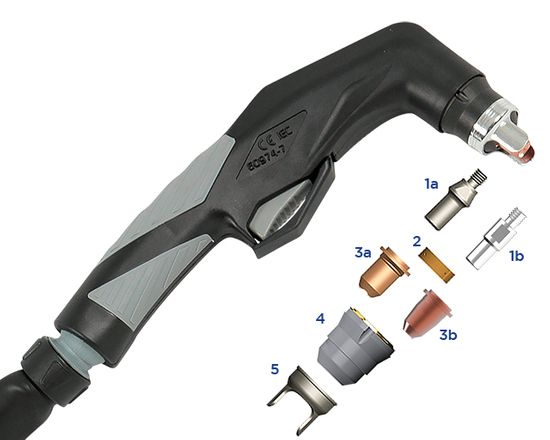

Plasma Torch & Parts - Weldclass XTP40/60
Brand
| Image | Image | Part No. | Description | Stock Available | MOQ | Price | Ord Qty |
|---|---|---|---|---|---|---|---|
WC-01658

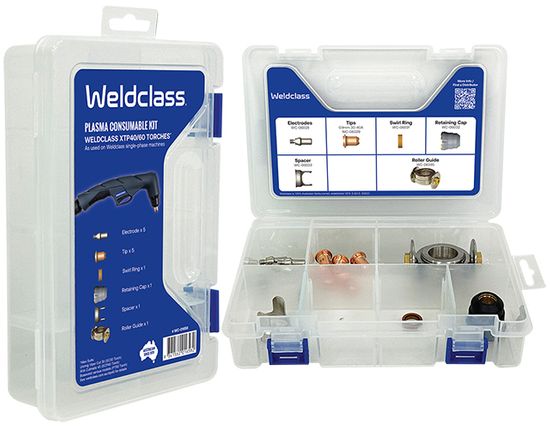

Parts Kit with storage box & Roller Guide Stock Available:
In Stock
|
|
WC-01658
|
Parts Kit with storage box & Roller Guide WC-01658
|
In Stock
|
Quantity Breaks
1+
$179.00
10+
$172.00
|
Quantity Breaks
1-9
$179.00
10+
$172.00
$179.00
|
|
WC-06028

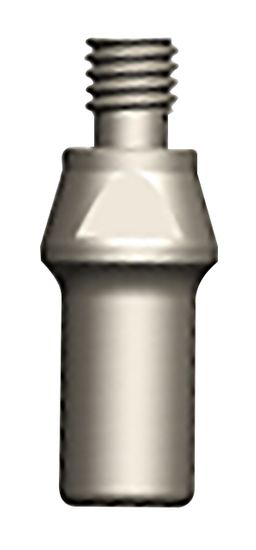

1a) Electrode Pk5 Stock Available:
In Stock
|
|
WC-06028
|
1a) Electrode Pk5 WC-06028
|
In Stock
|
Quantity Breaks
1+
$49.00
5+
$47.95
|
Quantity Breaks
1-4
$49.00
5+
$47.95
$49.00
|
|
WC-06031

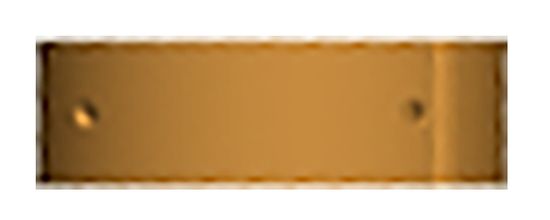

2) Swirl Ring Pk1 Stock Available:
In Stock
|
|
WC-06031
|
2) Swirl Ring Pk1 WC-06031
|
In Stock
|
Quantity Breaks
1+
$44.50
5+
$40.90
|
Quantity Breaks
1-4
$44.50
5+
$40.90
$44.50
|
|
WC-06029

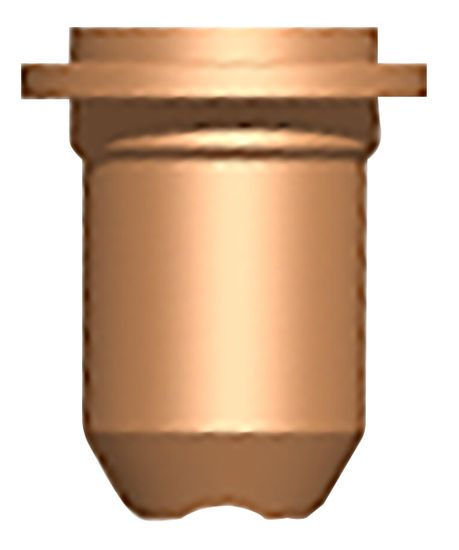

3a) Tip 0.9mm 30-40A (Stand-off or Drag) Pk5 Stock Available:
In Stock
|
|
WC-06029
|
3a) Tip 0.9mm 30-40A (Stand-off or Drag) Pk5 WC-06029
|
In Stock
|
Quantity Breaks
1+
$54.90
5+
$51.90
|
Quantity Breaks
1-4
$54.90
5+
$51.90
$54.90
|
|
WC-06032

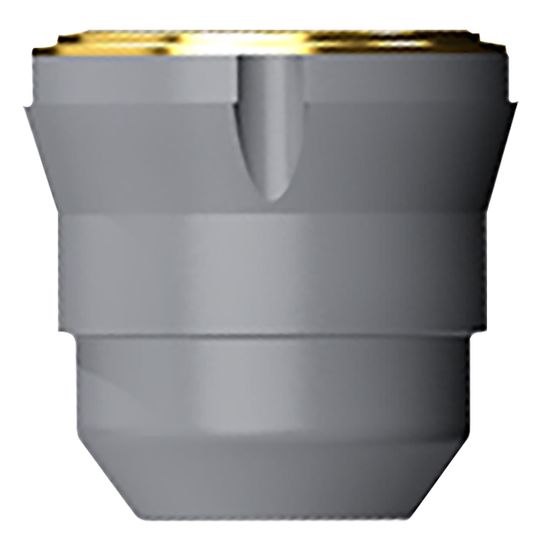

4a) Retaining Cap 6-Hole Std Pk1 Stock Available:
In Stock
|
|
WC-06032
|
4a) Retaining Cap 6-Hole Std Pk1 WC-06032
|
In Stock
|
Quantity Breaks
1+
$59.90
5+
$58.10
|
Quantity Breaks
1-4
$59.90
5+
$58.10
$59.90
|
|
WC-06458
4b) Retaining Cap with 4 air/port holes Pk1 Stock Available:
In Stock
|
|
WC-06458
|
4b) Retaining Cap with 4 air/port holes Pk1 WC-06458
|
In Stock
|
Quantity Breaks
1+
$59.90
5+
$58.10
|
Quantity Breaks
1-4
$59.90
5+
$58.10
$59.90
|
|
WC-06033

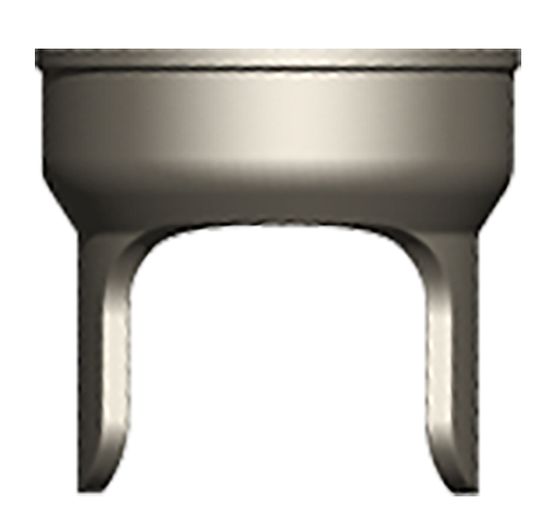

5) Spacer Pk1 Stock Available:
In Stock
|
|
WC-06033
|
5) Spacer Pk1 WC-06033
|
In Stock
|
Quantity Breaks
1+
$37.90
5+
$35.00
|
Quantity Breaks
1-4
$37.90
5+
$35.00
$37.90
|
|
TJ1202R

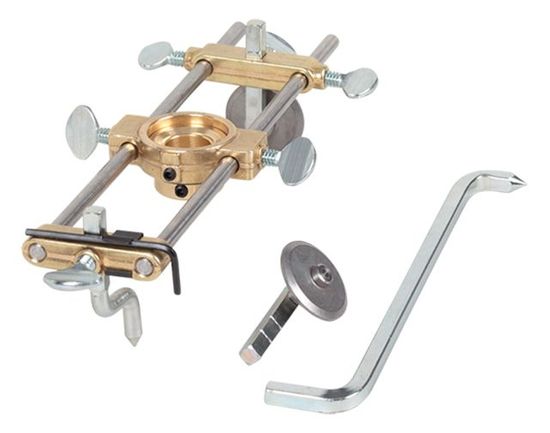

Circle Guide, cuts circles 38-700mm diameter
Suits: Weldclass 40P/41PA/43P/45P / XTP 40/60 Torch Cigweld CutSkill 35/45/60/EasyCut (ref CSP337041) Unimig Viper Cut 30 / SC30 Torch (ref WGSC2550) WIA Cutmatic 45 (ref SCP2550) Lincoln Invertec PC210 / LC25 Torch Bossweld P60, X-CUT 15.0, X-CUT 30.0 / PT40, PT60 Torch (ref 96.51866) Stock Available:
In Stock
|
|
TJ1202R
|
Circle Guide, cuts circles 38-700mm diameter
Suits: Weldclass 40P/41PA/43P/45P / XTP 40/60 Torch Cigweld CutSkill 35/45/60/EasyCut (ref CSP337041) Unimig Viper Cut 30 / SC30 Torch (ref WGSC2550) WIA Cutmatic 45 (ref SCP2550) Lincoln Invertec PC210 / LC25 Torch Bossweld P60, X-CUT 15.0, X-CUT 30.0 / PT40, PT60 Torch (ref 96.51866) TJ1202R
|
In Stock
|
1+
|
$195.45
|
|
TJ1562

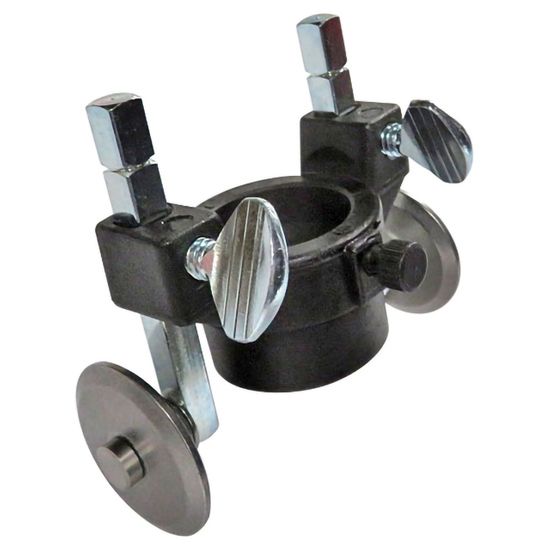

Roller Guide
Suits: Weldclass 40P/41PA/43P/45P / XTP 40/60 Torch Cigweld CutSkill 35/45/60/EasyCut Unimig Viper Cut 30 / SC30 Torch (ref WGSC2551) WIA Cutmatic 45 (ref SCP2551) Lincoln Invertec PC210 / LC25 Torch Bossweld P60, X-CUT 15.0, X-CUT 30.0 / PT40, PT60 Torch (ref 96.TJ1536) Stock Available:
In Stock
|
|
TJ1562
|
Roller Guide
Suits: Weldclass 40P/41PA/43P/45P / XTP 40/60 Torch Cigweld CutSkill 35/45/60/EasyCut Unimig Viper Cut 30 / SC30 Torch (ref WGSC2551) WIA Cutmatic 45 (ref SCP2551) Lincoln Invertec PC210 / LC25 Torch Bossweld P60, X-CUT 15.0, X-CUT 30.0 / PT40, PT60 Torch (ref 96.TJ1536) TJ1562
|
In Stock
|
1+
|
$72.70
|
See fact sheet under Downloads tab for full details of compatability of these parts for Weldclass and other brands of plasma machines/torches.
Parts to suit XTP40 torch fitted to WELDCLASS Cutforce 40P & 45P machines:
WC-06028 Electrode Pk5
WC-06031 Swirl Ring
WC-06029 Tip 0.9mm 30-40A Pk5
WC-06032 Retaining Cap 6-Hole Std
WC-06033 Spacer / Stand-Off Guide
TJ1562 Roller Guide
TJ1202R Circle Guide
Parts to suit XTP60 torch fitted to WELDCLASS Cutforce 43P machine:
WC-06028 Electrode Pk5
WC-06031 Swirl Ring
WC-06029 Tip 0.9mm 30-40A Pk5
WC-06032 Retaining Cap 6-Hole Std
TJ1562 Roller Guide
TJ1202R Circle Guide
Note: Spacer / Stand-Off Guide should NOT be used on this machine. The 43P is designed for drag cutting only and will only operate if the tip contacts the work piece.
Parts to suit XTP60 torch fitted to WELDCLASS Cutforce 41PA machine with in-built air compressor:
WC-06028 Electrode Pk5
WC-06031 Swirl Ring
WC-06029 Tip 0.9mm 30-40A Pk5
WC-06458 Retaining Cap Special 4-Hole Type*
TJ1562 Roller Guide
TJ1202R Circle Guide
*Retaining cap with 4 port holes (rather than the standard 6-hole design) must be used on the 41PA machine, as it is specifically designed for use with in-built air compressor, which operates at lower air flow rate & pressure (vs machines that use standard external compressed air supply).
Note: Spacer / Stand-Off Guide should NOT be used on this machine. The 43P is designed for drag cutting only and will only operate if the tip contacts the work piece.
Parts to suit torch fitted to CIGWELD CutSkill 45/35/60 & EasyCut machines:
WC-06457 Electrode Pk5 (cross ref CSP337003)
WC-06031 Swirl Ring (cross ref CSP337007)
WC-06459 Tip 0.9mm 30-40A Pk5 (cross ref CSP337002)
WC-06032 Retaining Cap 6-Hole Std (cross ref CSP337005)
WC-06033 Spacer / Stand-Off Guide (cross ref CSP337004)
TJ1562 Roller Guide
TJ1202R Circle Guide
Parts to suit SC30 torch fitted to UNIMIG Viper Cut 30 machines:
WC-06028 Electrode Pk5 (cross ref WGSC2504)
WC-06031 Swirl Ring (cross ref WGSC2506)
WC-06029 Tip 0.9mm 30-40A Pk5 (cross ref WGSC2520-09)
WC-06032 Retaining Cap 6-Hole Std (cross ref WGSC2530)
WC-06033 Spacer / Stand-Off Guide (cross ref WGSC2540)
TJ1562 Roller Guide (cross ref WGSC2551)
TJ1202R Circle Guide (cross ref WGSC2550)
FAQs
Q: Are torch heads available for these torches?
A: Weldclass does not supply the torch head as a separate parts. This is becuase ongoing improvements have been made to both the torch and the torch head design over time (to improve reliability and longevity), and heads are not interchangeable across every different batch/version of the torch. We offer complete torches as listed on this page, which also means that the new/replacement torch will carry any design improvements that the manufacturer has implemented to date.
